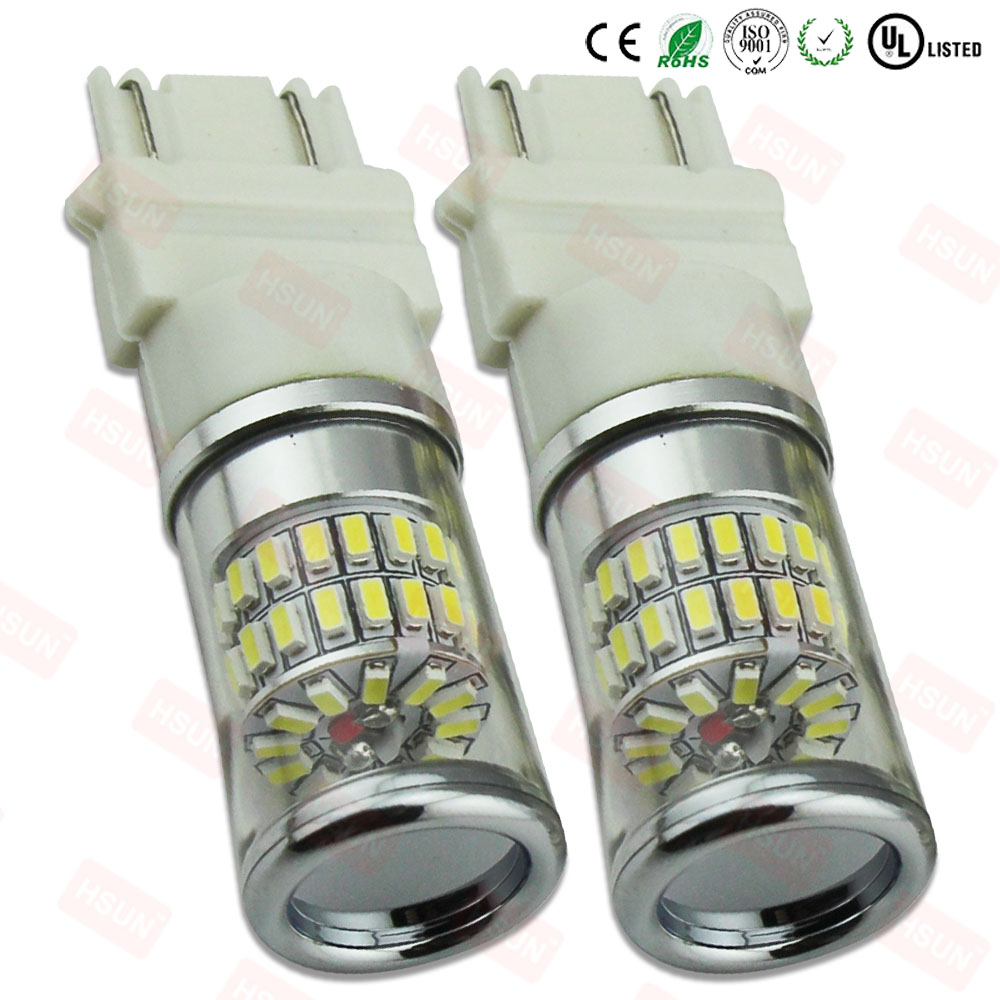

HSUN-48 LED SMD3014 (T25-P27/7W-3157)

Base: T25 P27/7W 3157

LED Quantity: 48 pcs

Operating Voltage Range: 12-24VDC

Luminous Flux: 864 LM

Operating Current: 380mA (Strong) / 150mA (Dim)

Power Consumption: 4.56W (Strong) /1.8W (Dim)

Application: Tail Light,Brake Light

Description

Item Name:

HSUN-48 LED SMD3014 (T25-P27/7W-3157)

Operating Voltage Available:

Unit: VDC

12-24VDC
Base: T25 P27/7W 3157

Operating Current:

Unit: mA

380 mA (Strong) / 150mA (Dim)
LED Chip: LED SMD3014

Power Consumption:

Unit: W

4.56W (Strong) /1.8W (Dim)
Brand: HSUN

Luminous Flux:

Unit: Lumen

864 LM
Beam Pattern: 360° Operating Temperature Range: -30°C - + 85°C
Color: white,blue,red,green,amber ,pink, purple etc, all colors are available

Storage Temperature Range: -40°C to +100°C --- Up to 50,000 hour life span

Remark: we can produce with all kind of led chips as customers require ,please contact HSUN


1. White,blue,red, green,amber,pink,purple etc,all colors are available

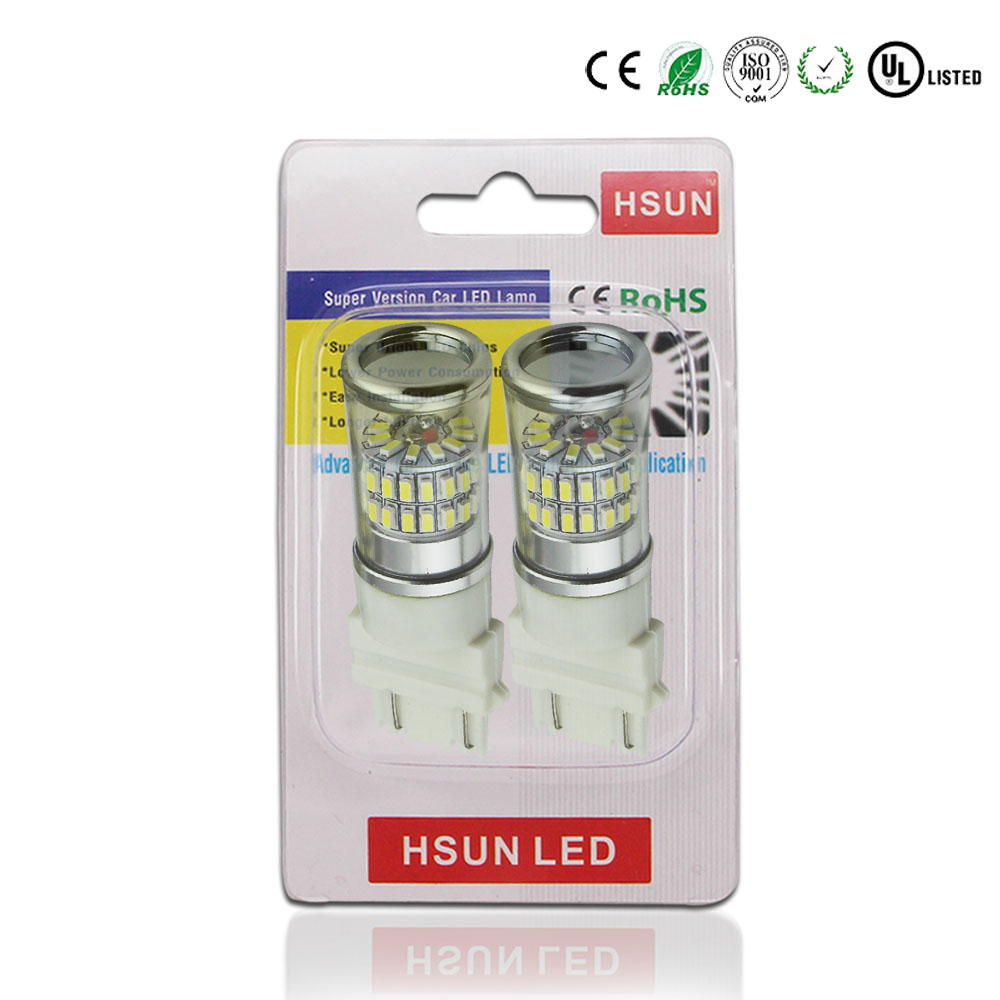

2. Packing Specification: Anti-Electrostatic Polybag or Blister card
3. Warranty Time: 24 months
4. Terms of payment: T/T, Western Union, PayPal and Escrow
5. Usage: Tail Light,Brake Light
